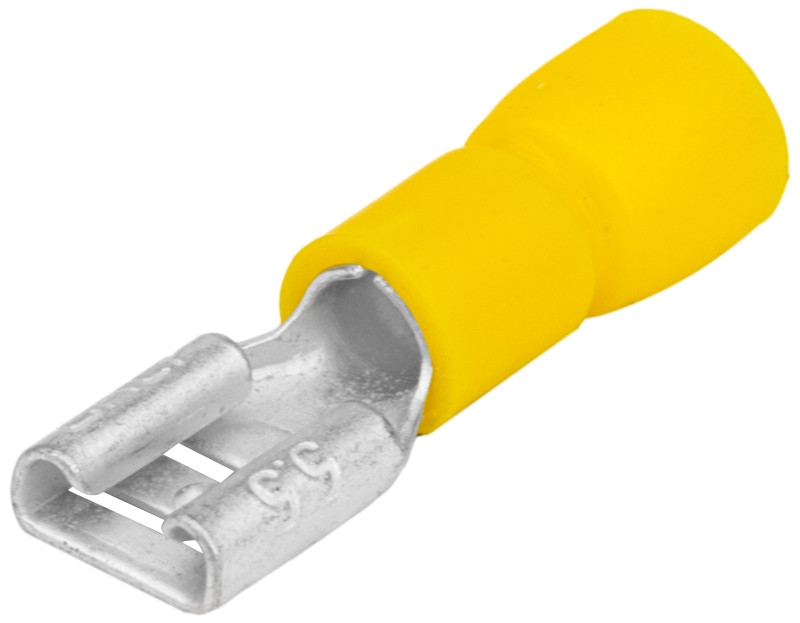

Izolirane natične kabelske spojke
|

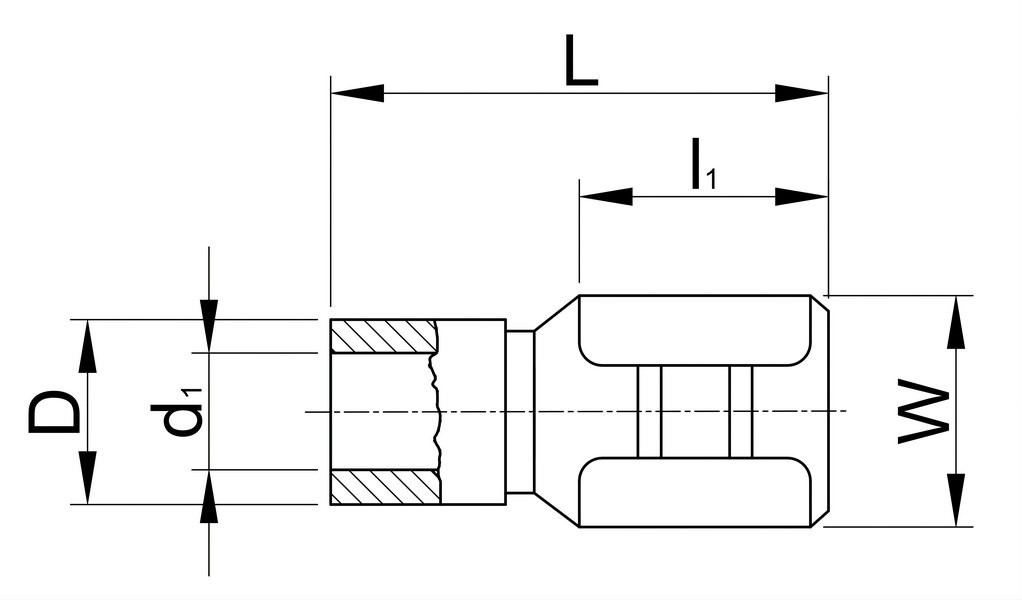

Koda
|
|
d1
(mm)
|
D
(mm)
|
L
(mm)
|
l1
(mm)
|
W
(mm)
|
 |
 |
 |
 |
|
|
SCSH6
|
6.3×0.8
|
3.4
|
6.5
|
23
|
7.5
|
7.3
|
6 |
4-6
|
4
|
Material: rumeni baker. Material izolacije: PVC.
Temperatura okolja: -20 °C…+75 °C
|
Koda
|
Mere
(mm)
|
d1
(mm)
|
D
(mm)
|
L
(mm)
|
l1
(mm)
|
W
(mm)
|
|
|
|
|
|
|
PCSH3
|
2.8×0.5
|
1.7
|
4.7
|
20.2
|
6.4
|
3.6
|
1.5
|
1-1.5
|
0.75-1
|
|
PCSH5
|
4.8×0.5
|
1.7
|
4.7
|
20.5
|
6.4
|
5.7
|
1.5
|
1-1.5
|
0.75-1
|
|
PCSH6
|
6.3×0.8
|
1.7
|
4.7
|
22
|
7.5
|
7.2
|
1.5
|
1-1.5
|
0.75-1
|
|
KCSH3
|
2.8×0.5
|
2.4
|
5.5
|
20.2
|
6.5
|
3.6
|
2.5-4
|
2.5
|
1.5
|
|
KCSH5
|
4.8×0.5
|
2.4
|
5.5
|
20.8
|
6
|
5.7
|
2.5-4
|
2.5
|
1.5
|
|
KCSH6
|
6.3×0.8
|
2.4
|
5.5
|
22
|
7.5
|
7.3
|
2.5-4
|
2.5
|
1.5
|
|
SCSH6
|
6.3×0.8
|
3.4
|
6.5
|
23
|
7.5
|
7.3
|
6
|
4-6
|
4
|
Orodja za stiskanje
| Koda |
|
|
|
 |
| PCSH3 |
1.5 |
1-1.5 |
0.75-1 |
9006 |
9006R |
| PCSH5 |
1.5 |
1-1.5 |
0.75-1 |
| PCSH6 |
1.5 |
1-1.5 |
0.75-1 |
| KCSH3 |
2.5-4 |
2.5 |
1.5 |
| KCSH5 |
2.5-4 |
2.5 |
1.5 |
| KCSH6 |
2.5-4 |
2.5 |
1.5 |
| SCSH6 |
6 |
4-6 |
4 |
OPOMBA: Slika je lahko simbolična, za barvo in tip izdelka, prosimo preverite kodo v opisu!
