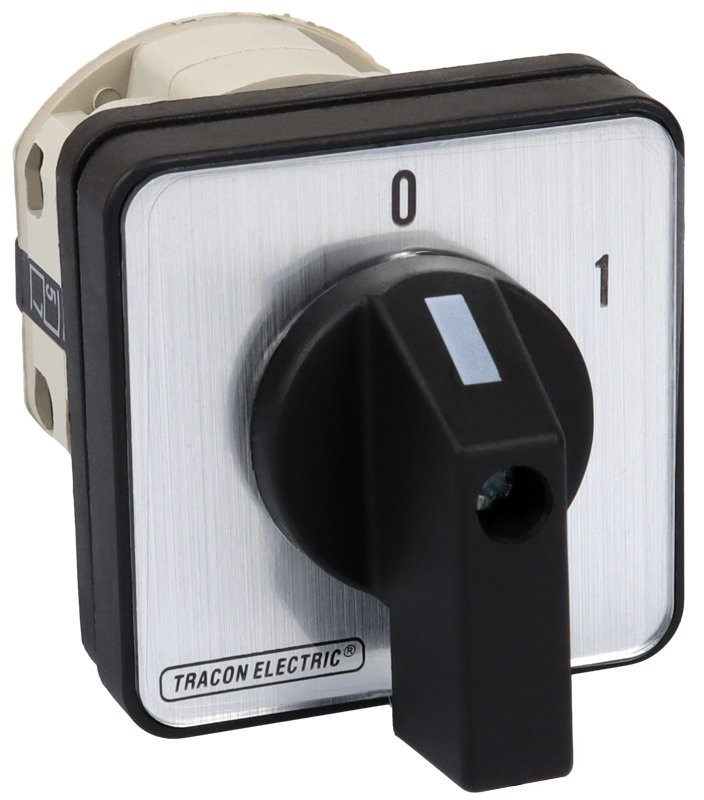

Grebenasto stikalo, 3P, 160 A, 400 V, ON-OF, 60°

Grebenasto stikalo, 3P, 160 A, 400 V, ON-OF, 60°

Koda: TK-166/3

Redna cena: 87,37 €

Cena s popustom 78,63 €

Vse cene že vsebujejo 22% DDV.

Dobava: Na zalogi

Ročno grebenasto stikalo ON-OFF 400V, 50Hz, 160A, 3P, 37kW, 88×88mm, 60°

Kol:

ALI

Cenik dostave

Opis izdelka Lastnosti izdelka Ostali izdelki v skupini Grebenasta stikala ON-OF

Podrobnosti

Osnovna stikala ON – OF

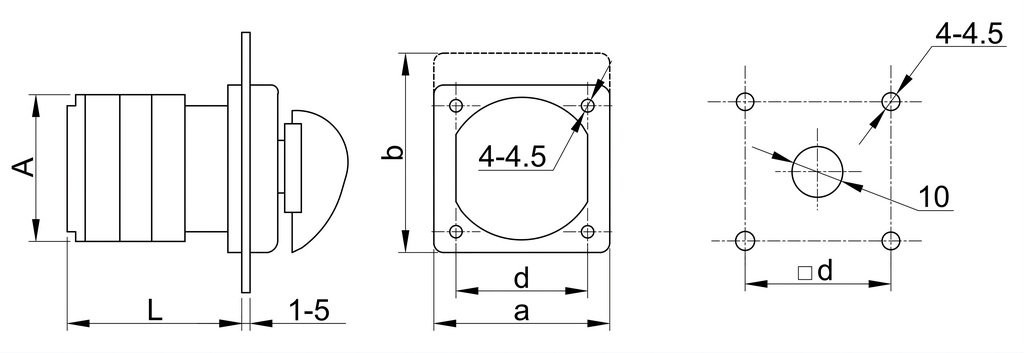

IP42	Koda			L (mm)	A (mm)	a (mm)	b (mm)	d (mm)
IP42	TK-166/3	160 A / 3P	TKTS-03	97	88	88	88	68

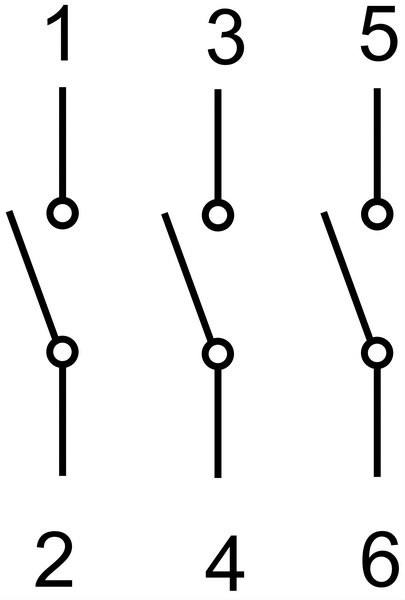

	0º	60º
1-2		X
3-4		X
5-6		X

Koda			Naziv	ohišje
Osnovna izvedba	z ohišjem IP44	z ohišjem IP65	Naziv	ohišje
TK-206/2	TK-206/2T	TK-206/2T65	2 p, 20A, ON-OFF,, 60°	TK/T1+F1/
TK-256/2	TK-256/2T	TK-256/2T65	2 p, 25A, ON-OFF, 60°	TK/T1+F1/
TK-209/2	TK-209/2T	TK-209/2T65	2 p, 20A, ON-OFF,, 90°	TK/T1+F1/
TK-259/2	TK-259/2T	TK-259/2T65	2 p, 25A, ON-OFF, 90°	TK/T1+F1/
TK-206/3	TK-206/3T	TK-206/3T65	3 p, 20A, ON-OFF,, 60°	TK/T1+F1/
TK-256/3	TK-256/3T	TK-256/3T65	3 p, 25A, ON-OFF, 60°	TK/T2+F1/
TK-326/3	TK-326/3T	TK-326/3T65	3 p, 32A, ON-OFF, 60°	TK/T3+F3/
TK-636/3	TK-636/3T	TK-636/3T65	3 p, 63A, ON-OFF, 60°	TK/T3+F3/
TK-126/3	–	–	3 p, 125A, ON-OFF, 60°	–
TK-166/3	–	–	3 p, 160A, ON-OFF, 60°	–
TK-209/3	TK-209/3T	TK-209/3T65	3 p, 20A, ON-OFF, 90°	TK/T1+F1/
TK-259/3	TK-259/3T	TK-259/3T65	3 p, 25A, ON-OFF, 90°	TK/T2+F1/
TK-329/3	TK-329/3T	TK-329/3T65	3 p, 32A, ON-OFF, 90°	TK/T3+F3/
TK-639/3	TK-639/3T	TK-639/3T65	3 p, 63A, ON-OFF, 90°	TK/T3+F3/
TK-129/3	–	–	3 p, 125A, ON-OFF, 90°	–
TK-169/3	–	–	3 p, 160A, ON-OFF, 90°	–
TK-206/4	TK-206/4T	TK-206/4T65	4 p, 20A, ON-OFF, 60°	TK/T1+F1/
TK-256/4	TK-256/4T	TK-256/4T65	4 p, 25A, ON-OFF, 60°	TK/T2+F1/
TK-326/4	TK-326/4T	TK-326/4T65	4 p, 32A, ON-OFF, 60°	TK/T3+F3/
TK-636/4	TK-636/4T	TK-636/4T65	4 p, 63A, ON-OFF, 60°	TK/T3+F3/
TK-126/4	–	–	4 p, 125A, ON-OFF, 60°	–
TK-166/4	–	–	4 p, 160A, ON-OFF, 60°	–
TK-209/4	TK-209/4T	TK-209/4T65	4 p, 20A, ON-OFF, 90°	TK/T1+F1/
TK-259/4	TK-259/4T	TK-259/4T65	4 p, 25A, ON-OFF, 90°	TK/T2+F1/
TK-329/4	TK-329/4T	TK-329/4T65	4 p, 32A, ON-OFF, 90°	TK/T3+F3/
TK-639/4	TK-639/4T	TK-639/4T65	4 p, 63A, ON-OFF, 90°	TK/T3+F3/
TK-129/4	–	–	4 p, 125A, ON-OFF, 90°	–
TK-169/4	–	–	4 p, 160A, ON-OFF, 90°	–

Koda			Dimenzije
Osnovna izvedba	z ohišjem IP44	z ohišjem IP65	L (mm)	A (mm)	a (mm)	b (mm)	d (mm)
TK-206/2	TK-206/2T	TK-206/2T65	28	43,5	48	48	36
TK-256/2	TK-256/2T	TK-256/2T65	28	43,5	48	48	36
TK-209/2	TK-209/2T	TK-209/2T65	33	45,3	48	48	36
TK-259/2	TK-259/2T	TK-259/2T65	33	45,3	48	48	36
TK-206/3	TK-206/3T	TK-206/3T65	41,2	43	48	48	36
TK-256/3	TK-256/3T	TK-256/3T65	48,6	45,2	48	48	36
TK-326/3	TK-326/3T	TK-326/3T65	54,8	58	64	64	48
TK-636/3	TK-636/3T	TK-636/3T65	72,2	66	64	64	48
TK-126/3	–	–	84	84	88	88	68
TK-166/3	–	–	97	88	88	88	68
TK-209/3	TK-209/3T	TK-209/3T65	41,2	43	48	48	36
TK-259/3	TK-259/3T	TK-259/3T65	48,6	45,2	48	48	36
TK-329/3	TK-329/3T	TK-329/3T65	54,8	58	64	64	48
TK-639/3	TK-639/3T	TK-639/3T65	72,2	66	64	64	48
TK-129/3	–	–	84	84	88	88	68
TK-169/3	–	–	97	88	88	88	68
TK-206/4	TK-206/4T	TK-206/4T65	41,2	43	48	48	36
TK-256/4	TK-256/4T	TK-256/4T65	48,6	45,2	48	48	36
TK-326/4	TK-326/4T	TK-326/4T65	54,8	58	64	64	48
TK-636/4	TK-636/4T	TK-636/4T65	72,2	66	64	64	48
TK-126/4	–	–	84	84	88	88	68
TK-166/4	–	–	97	88	88	88	68
TK-209/4	TK-209/4T	TK-209/4T65	41,2	43	48	48	36
TK-259/4	TK-259/4T	TK-259/4T65	48,6	45,2	48	48	36
TK-329/4	TK-329/4T	TK-329/4T65	54,8	58	64	64	48
TK-639/4	TK-639/4T	TK-639/4T65	72,2	66	64	64	48
TK-129/4	–	–	84	84	88	88	68
TK-169/4	–	–	97	88	88	88	68

Dodatni podatki

Koda	TK-166/3
Tehnični podatki	400V, 50Hz, 160A, 3P, 37kW, 88×88mm, 60°
Proizvajalec	Tracon
Certifikati	Certifikat ustreznosti
Naziv (ANG)	Cam switch, ON-OFF 400V, 50Hz, 160A, 3P, 37kW, 88×88mm, 60°
Ean	5997374139885
