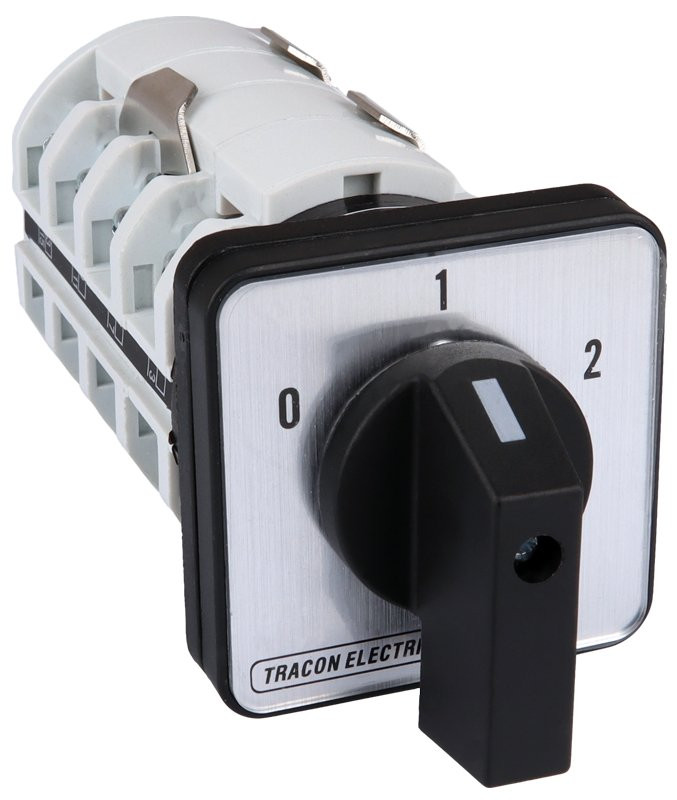

Motorsko stikalo Dahlander 400V, 160A, 37kW, 88×88mm
Akcijska cena 85,24 € Redna cena 94,71 €
Na zalogi
Koda
TKM-16/D
Kratek opis
Motorsko stikalo Dahlander Tracon TKM-16/D (400 V, 50 Hz, 160 A, 37 kW) v kompaktni izvedbi 88×88 mm z zaščito IP42 — idealno za preklop Dahlander in trifaznih motorjev. Ima certifikat ustreznosti in 2-letno garancijo, na voljo v Elektrotrgovini (EAN 5997374140768).
Motorna stikala

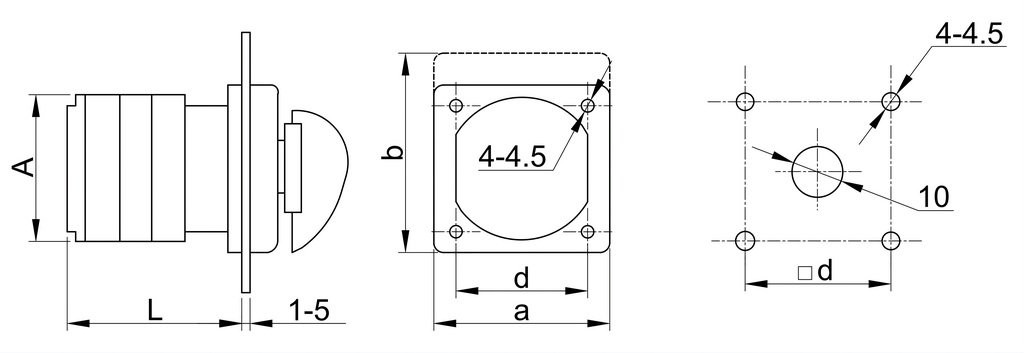

 IP42 | Koda |  |  | L (mm) | A (mm) | a (mm) | b (mm) | d (mm) |
| TKM-16/D | Dahlander 37 kW | - | 163 | 88 | 88 | 88 | 68 |

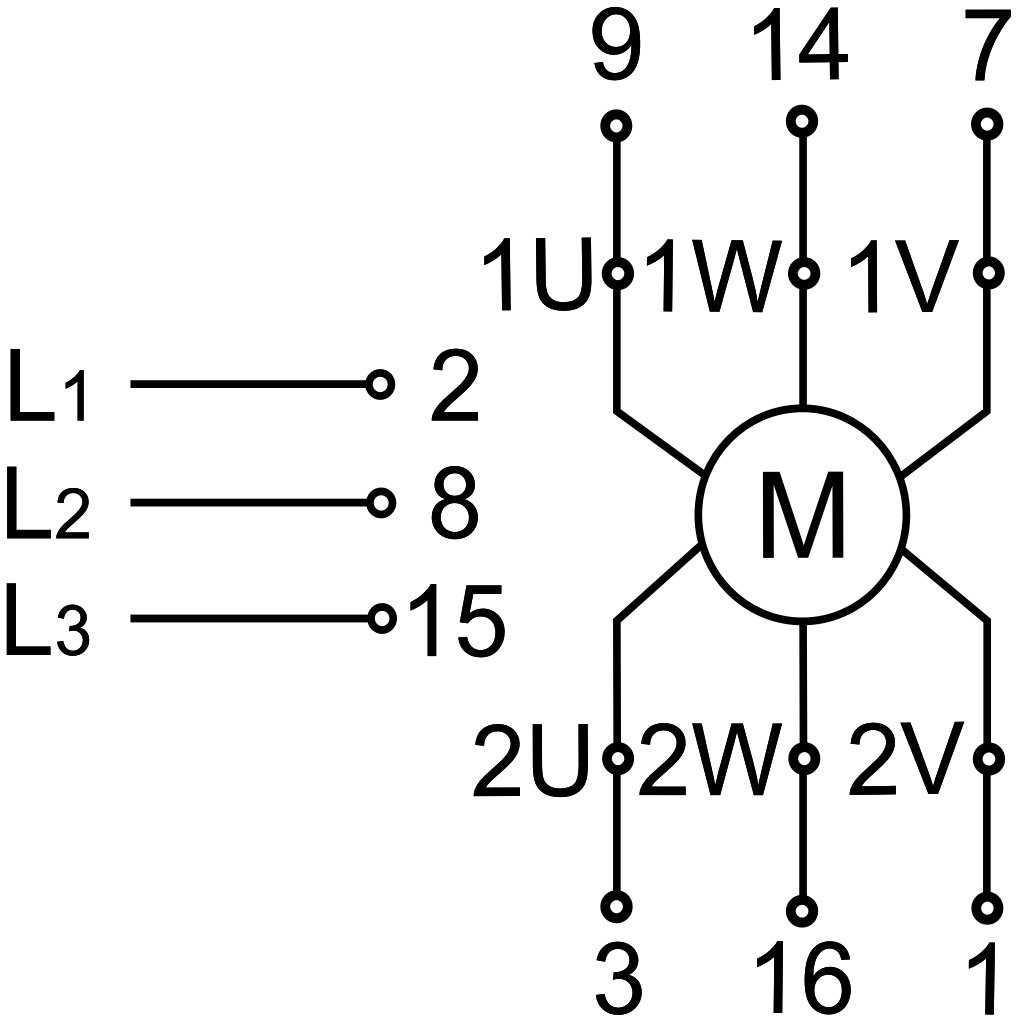

 | -60º | 0º | 60º |  |
| 1-2 | X | |||
| 3-4 | X | |||
| 5-6 | X | |||
| 7-8 | X | |||
| 9-10 | X | |||
| 11-12 | X | |||
| 13-14 | X | |||
| 15-16 | X |
Koda | Naziv | Ohišje | ||
Osnovna izvedba | z ohišjem IP44 | z ohišjem IP65 | ||
TKM-20/Q | TKM-20/QT | TKM-20/QT65 | ON-OFF 5,5kW | TK/T1+F1/ |
TKM-25/Q | TKM-25/QT | TKM-25/QT65 | ON-OFF 7,5kW | TK/T2+F1/ |
TKM-32/Q | TKM-32/QT | TKM-32/QT65 | ON-OFF 11kW | TK/T3+F3/ |
TKM-63/Q | TKM-63/QT | TKM-63/QT65 | ON-OFF 18,5kW | TK/T3+F3/ |
TKM-12/Q | – | – | ON-OFF 30kW | – |
TKM-16/Q | – | – | ON-OFF 37kW | – |
TKM-20/N | TKM-20/NT | TKM-20/NT65 | Smerni preklopnik 1,5kW | TK/T2+F1/ |
TKM-25/N | – | – | Smerni preklopnik 3kW | – |
TKM-32/N | TKM-32/NT | TKM-32/NT65 | Smerni preklopnik 5,5kW | TK/T3+F3/ |
TKM-63/N | – | – | Smerni preklopnik 7,5kW | – |
TKM-12/N | – | – | Smerni preklopnik 12kW | – |
TKM-16/N | – | – | Smerni preklopnik 15kW | – |
TKM-20/C | – | – | Y-D 1,5 kW | – |
TKM-25/C | – | – | Y-D 3,0 kW | – |
TKM-32/C | TKM-32/CT | TKM-32/CT65 | Y-D 5,5 kW | TK/T3+F3/ |
TKM-63/C | – | – | Y-D 7,5 kW | – |
TKM-12/C | – | – | Y-D 12,0 kW | – |
TKM-16/C | – | – | Y-D 15,0 kW | – |
TKM-20/D | – | – | Dahlander 1,5 kW | – |
TKM-25/D | – | – | Dahlander 3,0 kW | – |
TKM-32/D | TKM-32/DT | TKM-32/DT65 | Dahlander 5,5 kW | TK/T3+F3/ |
TKM-63/D | – | – | Dahlander 7,5 kW | – |
TKM-12/D | – | – | Dahlander 12,0 kW | – |
TKM-16/D | – | – | Dahlander 15,0 kW | – |
Koda | Dimenzije | ||||||
Osnovna izvedba | z ohišjem IP44 | z ohišjem IP65 | L (mm) | A (mm) | a (mm) | b (mm) | d (mm) |
TKM-20/Q | TKM-20/QT | TKM-20/QT65 | 41,2 | 43 | 48 | 48 | 36 |
TKM-25/Q | TKM-25/QT | TKM-25/QT65 | 48,6 | 45,2 | 48 | 48 | 36 |
TKM-32/Q | TKM-32/QT | TKM-32/QT65 | 54,8 | 58 | 64 | 64 | 48 |
TKM-63/Q | TKM-63/QT | TKM-63/QT65 | 72,2 | 66 | 64 | 64 | 48 |
TKM-12/Q | – | – | 84 | 84 | 88 | 88 | 68 |
TKM-16/Q | – | – | 97 | 88 | 88 | 88 | 68 |
TKM-20/N | TKM-20/NT | TKM-20/NT65 | 50,8 | 43 | 48 | 48 | 36 |
TKM-25/N | – | – | 61,4 | 45,2 | 48 | 48 | 36 |
TKM-32/N | TKM-32/NT | TKM-32/NT65 | 67,6 | 58 | 64 | 64 | 48 |
TKM-63/N | – | – | 93,7 | 66 | 64 | 64 | 48 |
TKM-12/N | – | – | 111 | 84 | 88 | 88 | 68 |
TKM-16/N | – | – | 130 | 88 | 88 | 88 | 68 |
TKM-20/C | – | – | 57 | 44 | 48 | 48 | 36 |
TKM-25/C | – | – | 70 | 46 | 48 | 48 | 36 |
TKM-32/C | TKM-32/CT | TKM-32/CT65 | 78 | 58 | 64 | 64 | 48 |
TKM-63/C | – | – | 112 | 66 | 64 | 64 | 48 |
TKM-12/C | – | – | 138 | 84 | 88 | 88 | 68 |
TKM-16/C | – | – | 163 | 88 | 88 | 88 | 68 |
TKM-20/D | – | – | 57 | 44 | 48 | 48 | 36 |
TKM-25/D | – | – | 70 | 46 | 48 | 48 | 36 |
TKM-32/D | TKM-32/DT | TKM-32/DT65 | 78 | 58 | 64 | 64 | 48 |
TKM-63/D | – | – | 112 | 66 | 64 | 64 | 48 |
TKM-12/D | – | – | 138 | 84 | 88 | 88 | 68 |
TKM-16/D | – | – | 163 | 88 | 88 | 88 | 68 |
| Koda | TKM-16/D |
|---|---|
| Proizvajalec | Tracon |
| Tehnični podatki | 400V, 50Hz, 160A, 37kW, 88×88mm |
| Certifikati | Certifikat ustreznosti |
| Naziv (ANG) | Dahlander motor switch 400V, 50Hz, 160A, 37kW, 88×88mm |
| Ean | 5997374140768 |
| Garancija | 2 leti |
