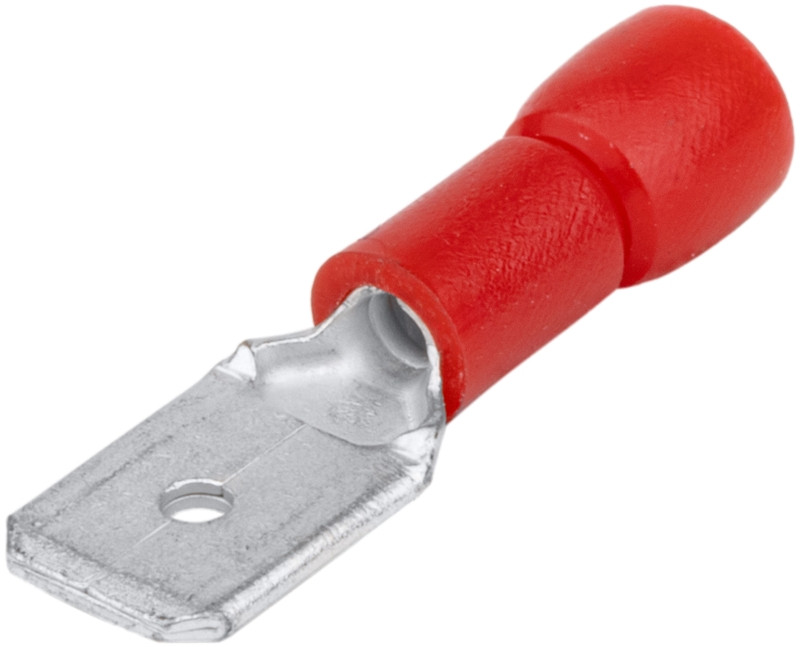

Izolirane vtične kabelske spojke
|

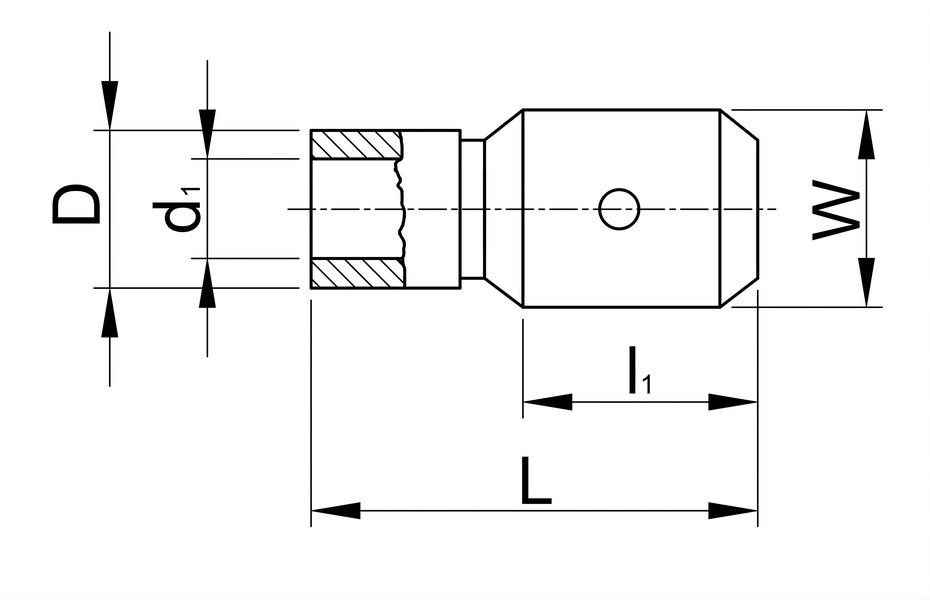

Koda
|
|
d1
(mm)
|
D
(mm)
|
L
(mm)
|
l1
(mm)
|
W
(mm)
|
 |
 |
 |
 |
|
|
PCS6
|
6.3×0.8
|
1.7
|
5
|
22 |
7.5
|
6.3
|
1.5
|
1-1.5
|
0.75-1
|
Material: rumeni baker. Material izolacije: PVC.
Temperatura okolja: -20 °C…+75 °C
|
Koda
|
Mere
(mm)
|
d1
(mm)
|
D
(mm)
|
L
(mm)
|
l1
(mm)
|
W
(mm)
|
|
|
|
|
|
|
PCS5
|
4.8×0.5
|
1.7
|
5.5
|
19
|
6.5
|
4.8
|
1.5
|
1-1.5
|
0.75-1
|
|
PCS6
|
6.3×0.8
|
1.7
|
5
|
22
|
7.5
|
6.3
|
1.5
|
1-1.5
|
0.75-1
|
|
KCS5
|
4.8×0.5
|
2.4
|
6
|
19
|
6.5
|
4.8
|
2.5-4
|
2.5
|
1.5
|
|
KCS6
|
6.3×0.8
|
2.4
|
5.5
|
22
|
7.5
|
6.3
|
2.5-4
|
2.5
|
1.5
|
|
SCS6
|
6.3×0.8
|
3.5
|
6.5
|
23
|
7.5
|
6.3
|
6
|
4-6
|
4
|
Orodja za stiskanje
| Koda |
|
|
|
 |
| PCS5 |
1.5 |
1-1.5 |
0.75-1 |
9006 |
9006R |
| PCS6 |
1.5 |
1-1.5 |
0.75-1 |
| KCS5 |
2.5-4 |
2.5 |
1.5 |
| KCS6 |
2.5-4 |
2.5 |
1.5 |
| SCS6 |
6 |
4-6 |
4 |
OPOMBA: Slika je lahko simbolična, za barvo in tip izdelka, prosimo preverite kodo v opisu!
